Product Summary

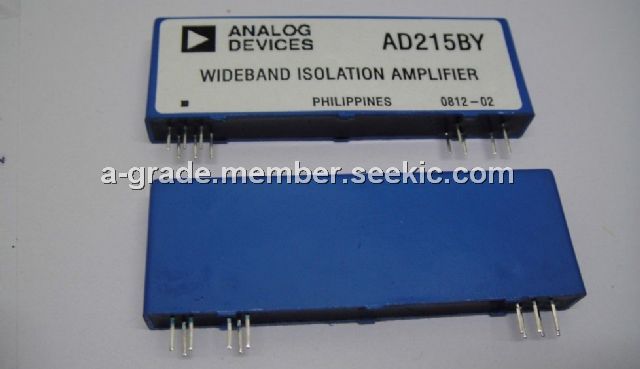

The AD215BY is a high speed input isolation amplifier designed to isolate and amplify wide bandwidth analog signals.

Parametrics

Absolute maximum ratings: (1)Input Voltage Rating:±10V; (2)Maximum Safe Differential Range:±15V; (3)CMRR of Input Op Amp:100dB; (4)Rated Performance temperature range:–40℃ to +85℃; (5)Storage temperature range:–40℃ to +85℃.

Features

Features: (1)Isolation Voltage Rating: 1,500 V rms; (2)Wide Bandwidth: 120 kHz, Full Power (–3 dB); (3)Rapid Slew Rate: 6 V/ms; (4)Fast Settling Time: 9 ms; (5)Low Harmonic Distortion: –80 dB @ 1 kHz; (6)Low Nonlinearity: ±0.005%; (7)Wide Output Range: ±10 V, min (Buffered); (8)Built-in Isolated Power Supply: ±15 V dc @ ±10 mA; (9)Performance Rated over –40℃ to +85℃.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD215BY
AD215BY

IC AMP ISOL LDIST 5MA 44SIP
Data Sheet
0-1: $47.76
1-10: $44.78
10-100: $40.30
100-250: $39.80
