Product Summary

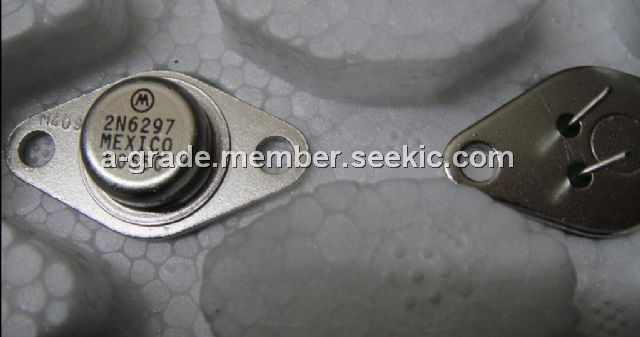

The 2N6297 is a silicon PNP power transistor.
Parametrics
Absolute maximum ratings: (1)Collector-base voltage:80V ; (2)Emitter-base voltage:5V ; (3)Collector current:4A ; (4)Collector current-Peak:8A ; (5)Base current:80mA ; (6)Total power dissipation:50W ; (7)Junction temperature:150℃ ; (8)Storage temperature:-65℃ to 200℃ .
Features
Features: (1)With TO-66 package ; (2)DARLINGTON.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N6297 |
Other |
|
Data Sheet |
Negotiable |
|
||||
