Product Summary

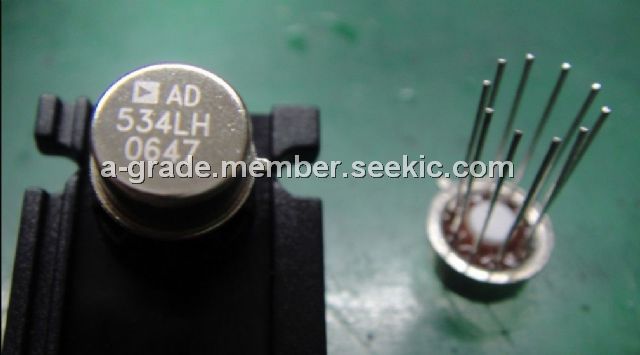

The AD534LH is a monolithic laser trimmed four-quadrant multiplier divider.
Parametrics
Absolute maximum ratings: (1)Supply Voltage:±18V; (2)Internal PowerDissipation:500mW; (3)Output Short-Circuit to Ground:Indefinite; (4)Input Voltages, X1 X2 Y1 Y2 Z1 Z2:±VS; (5)Rated Operating Temperature Range:0℃ to +70℃; (6)Storage Temperature Range:–65℃ to +150℃; (7)Lead Temperature Range, 60 s Soldering:+300℃.
Features
Features: (1)Scale-Factor Adjustable to Provide up to X100 Gain; (2)Low Noise Design: 90 mV rms, 10 Hz–10 kHz; (3)Low Cost, Monolithic Construction; (4)Excellent Long Term Stability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD534LH |
Analog Devices Inc |
IC PREC MULTIPLIER TO-100-10 |
Data Sheet |
Negotiable |
|
||||||
 |
AD534LHZ |
|
IC MULTIPLIER TRIMMED TO-100-10 |
Data Sheet |
|
|
||||||
