Product Summary

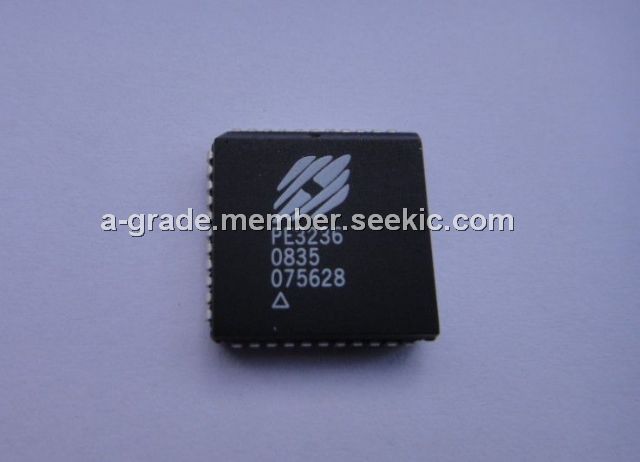

The PE3236 is a high performance integer-N PLL capable of frequency synthesis up to 2.2 GHz.
Parametrics
Absolute maximum ratings: (1)Supply voltage:-0.3V to 4.0V ; (2)Voltage on any input:-0.3V to VDD+0.3V ; (3)DC into any input:-10mA to +10mA ; (4)DC into any output:-10mA to +10mA ; (5)Storage temperature range:-65℃ to 150℃.
Features
Features: (1)2.2 GHz operation ; (2)10/11 dual modulus prescaler ; (3)Internal phase detector ; (4)Serial, parallel or hardwired programmable ; (5)Low power:22 mA at 3 V ; (6)Q3236 PLL replacement ; (7)Ultra-low phase noise.

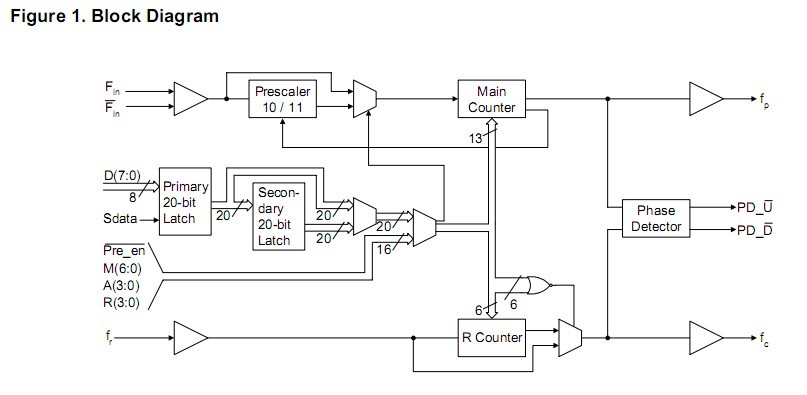

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PE3236 |
Other |
|
Data Sheet |
Negotiable |
|
||||
