Product Summary

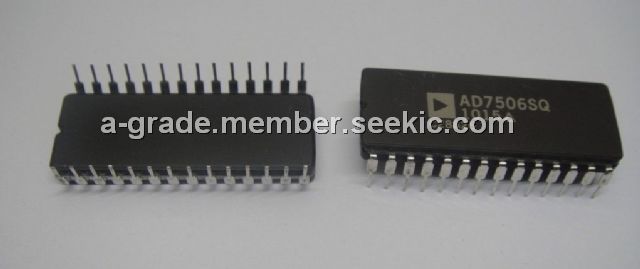

The AD7506SQ is a monolithic CMOS 16-channel analog multiplexer packaged in a 28-pin DIP or a 28-terminal surface mount package.

Parametrics

Absolute maximum ratings: (1)VDD-GND:+17V; (2)VSS-GND:-17V; (3)V between any switch terminals:25V; (4)digital input voltage range:VDD to GND; (5)switch current:20mA; (6)storage temperature:-65℃ to +150℃; (7)lead temperature(soldering, 10sec):+300℃.

Features

Features: (1)RON:300Ω; (2)power dissipation:1.5mW; (3)TTL/DTL/CMOS direct interface; (4)break-before-make switching.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7506SQ
AD7506SQ

IC MULTIPLEXER 16X1 28CDIP
Data Sheet
0-1: $47.89
